A Reliable Partner of the Copper Tube Industry

Zhejiang Jingliang Copper-Tube Products Co., Ltd is China High Purity Copper Tube Manufacturers and Custom Hollow Copper Tube Factory, which was formerly Shangyu Jingliang Copper Material Factory, founded in 1994 and has been deeply involved in the copper tube industry for over three decades. The company primarily produce various specifications of products such as copper tubes, brass tubes, copper square tubes, fin copper tubes, copper capillary tubes, condenser copper tubes, copper evaporator tubes, and conductive rods, which are of quality and have earned the trust and acclaim of customers both domestically and internationally.

Wide Applications:

These products are widely used in various fields including air conditioning, refrigeration, heat exchange, sanitary ware, automotive, machinery, electric furnaces, and chemical industries.

Convenient Transportation:

Strategically located in Tangpu Town, renowned as the “home of copper tubes” in East China. Our company enjoys a prime location, adjacent to the Shangsan Expressway and National Highway 104, and is conveniently situated just over 70 kilometers from Hangzhou and Ningbo, ensuring easy accessibility and a business position.

Strong Financial Resources:

With its strong financial resources and advanced copper tube processing technology, our company holds an advantageous position in market share, brand value, technological content, and product quality, becoming a preferred supplier for many listed groups.

Large Scale Production:

The company occupies an area of over 20,000 square meters, with a construction area of 12,800 square meters. In 2022, our annual production exceeded 7,500 tons, with a value output of up to 450 million yuan, demonstrating our strong production capacity and market competitiveness.

Comprehensive Industry Chain:

Jingliang has now developed into a complete industrial chain integrating smelting, extrusion, drawing, precision rolling, and annealing. It has been awarded multiple honors, including "Top Ten Copper Tube Enterprises" and "Leading Taxpayer in the Copper Tube Industry".

Smart Manufacturing:

Jingliang Copper-Tube Products will better integrate the concept of factory construction into its corporate development strategy, insist on refining technology and polishing products more finely, and the future of "intelligent manufacturing".

Genuine Cooperation:

Zhejiang Jingliang Copper-Tube Products Co.,Ltd warmly welcomes friends from all walks of life to visit and offer guidance. We look forward to joining hands with you to create a brilliant future together.

News

Message Feedback

Industry knowledge

Copper tubes can be classified by material into red copper tubes (pure copper), brass tubes (copper-zinc alloy) and bronze tubes (copper-tin alloy). Among them, red copper tubes are widely used in refrigeration, HVAC and water supply systems due to their thermal conductivity, corrosion resistance and ductility. According to the production process, they are divided into seamless copper tubes and welded copper tubes. Seamless tubes have a stronger pressure-bearing capacity and are suitable for high-pressure environments. The natural antibacterial property of copper pipes makes them an ideal choice for drinking water pipes. Meanwhile, their resistance to high and low temperatures (-196℃ to 250℃) also makes them suitable for working conditions.

Hollow Copper Tube Manufacturing by Jingliang

Zhejiang Jingliang Copper-Tube Products Co., Ltd. is a China-based Hollow Copper Tube manufacturer producing a wide range of seamless and custom copper tubes for air conditioning, refrigeration, heat exchange, sanitary ware, automotive, machinery, electric furnaces and chemical industries. Founded in 1994, we operate an integrated production chain from smelting and extrusion to drawing, precision rolling and annealing.

Our hollow copper tubes are supplied in round, square, rectangular and special-shaped sections, with options for inner grooving, finning, embossing and capillary dimensions. We work with project teams to match tube grade, temper, dimensions and surface condition to the working pressure, refrigerant, installation method and applicable standard.

Product Range and Application Fit

The Jingliang range covers standard and custom hollow copper tubes for OEM production and project procurement. Each category below is part of our regular manufacturing program, and we can combine features where the application requires it.

Product Category Typical Material / Feature Main Application Fit

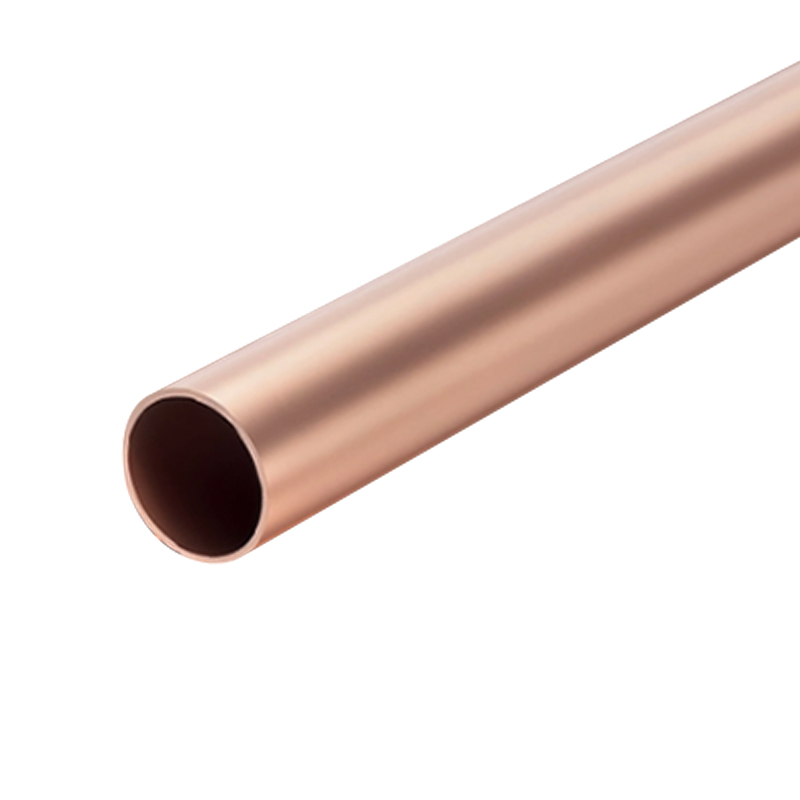

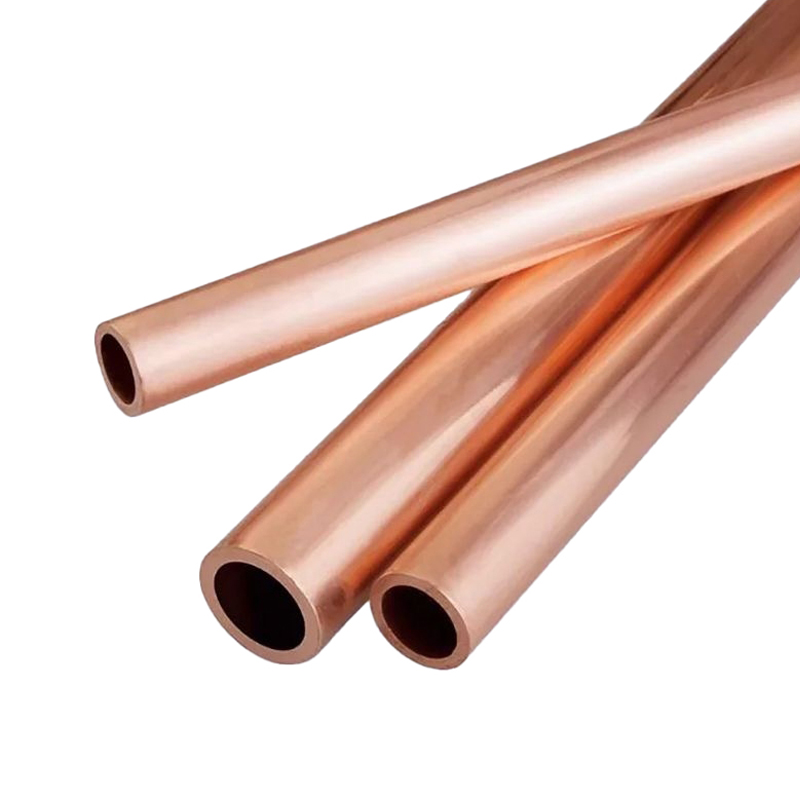

Copper Tube High-purity copper, Cu ≥ 99.9% General refrigeration, HVAC, water and industrial piping
Thick wall copper tube Wall thickness typically > 2 mm, hot extruded High-pressure refrigerants, chemical and energy systems, load-bearing structures
Custom Copper Water Tube Manufacturers Antibacterial, corrosion-resistant copper Potable hot and cold water systems, hospitals, hotels, ground-source heat pumps

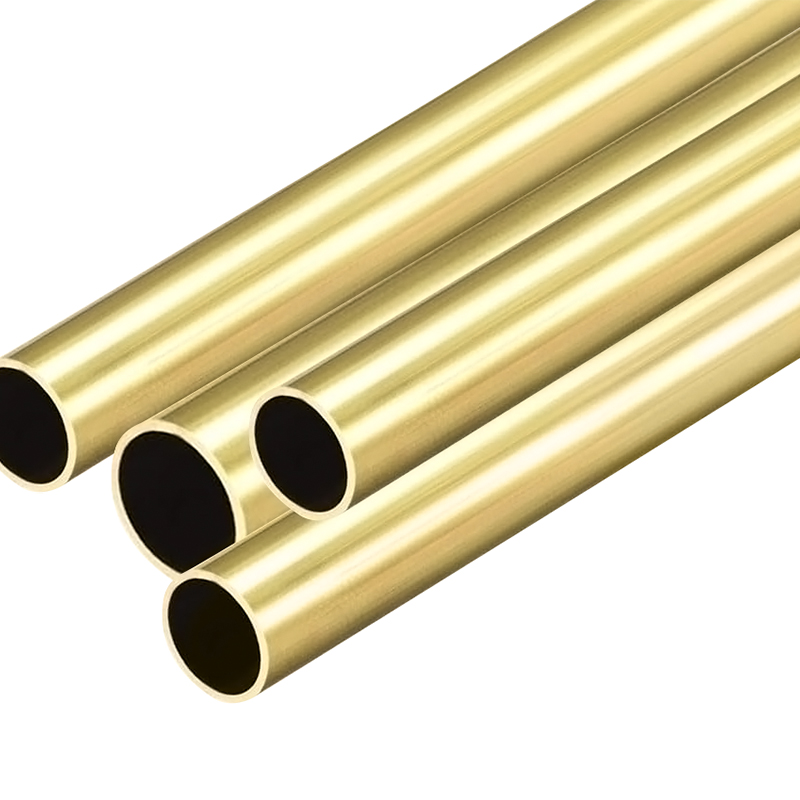

Brass Tube Copper-zinc alloy, good machinability Sanitary fittings, automotive parts, hardware, decorative applications
Copper Square Tube Square hollow section, high-purity copper Architectural trim, busbars, electrical conductors, structural frames
Condenser Copper Tube Proprietary fin design, enhanced heat transfer Air-conditioning and refrigeration condensers, heat exchangers
Copper Evaporator Tube External fins, unique profile Evaporators in refrigeration and HVAC systems

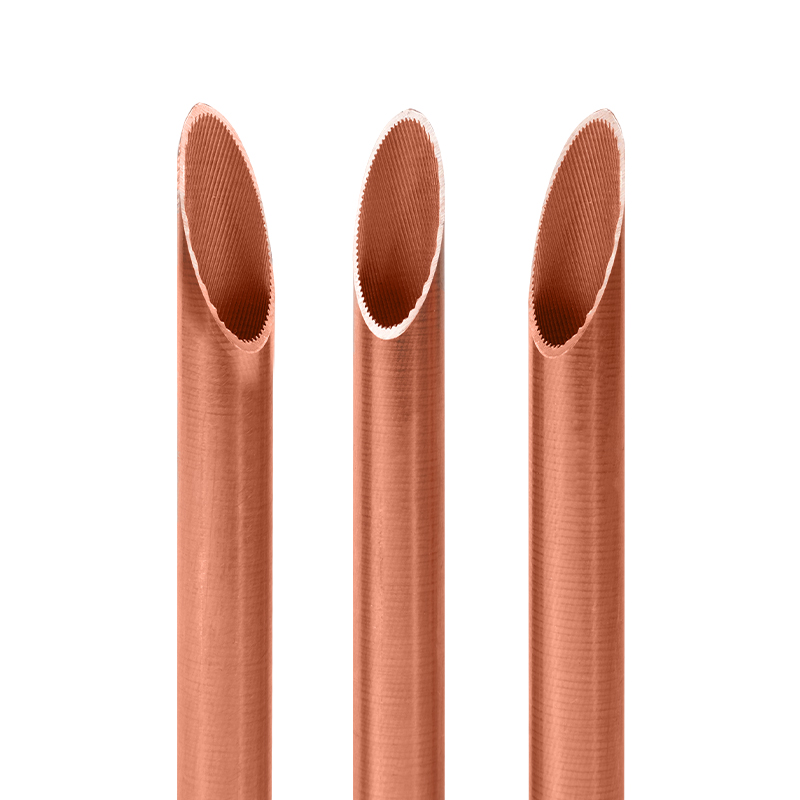

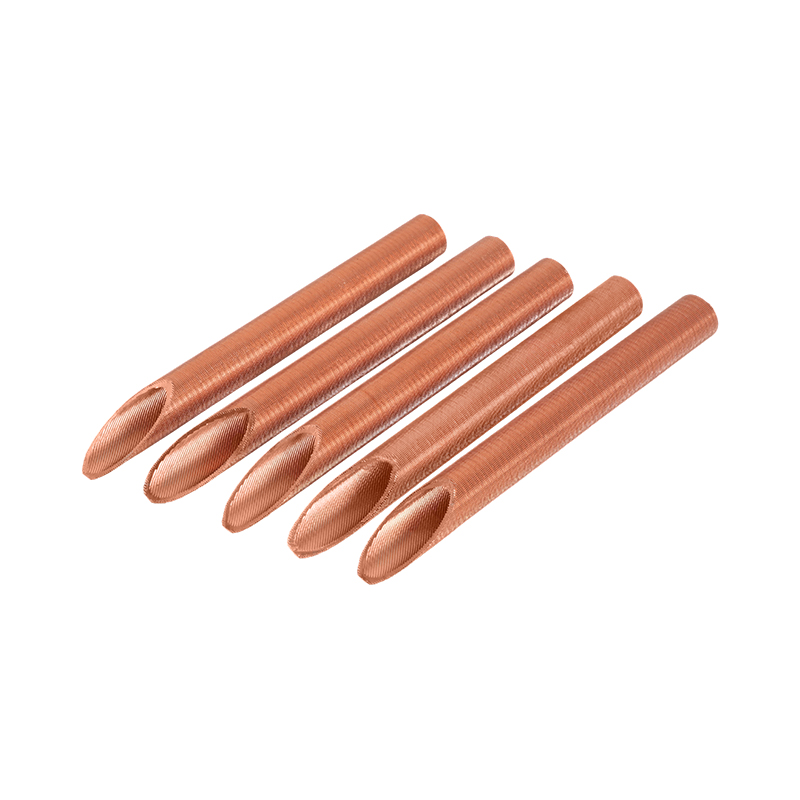

Inner Grooved Tube Precision internal grooves or ridges High-efficiency heat exchangers, air conditioners

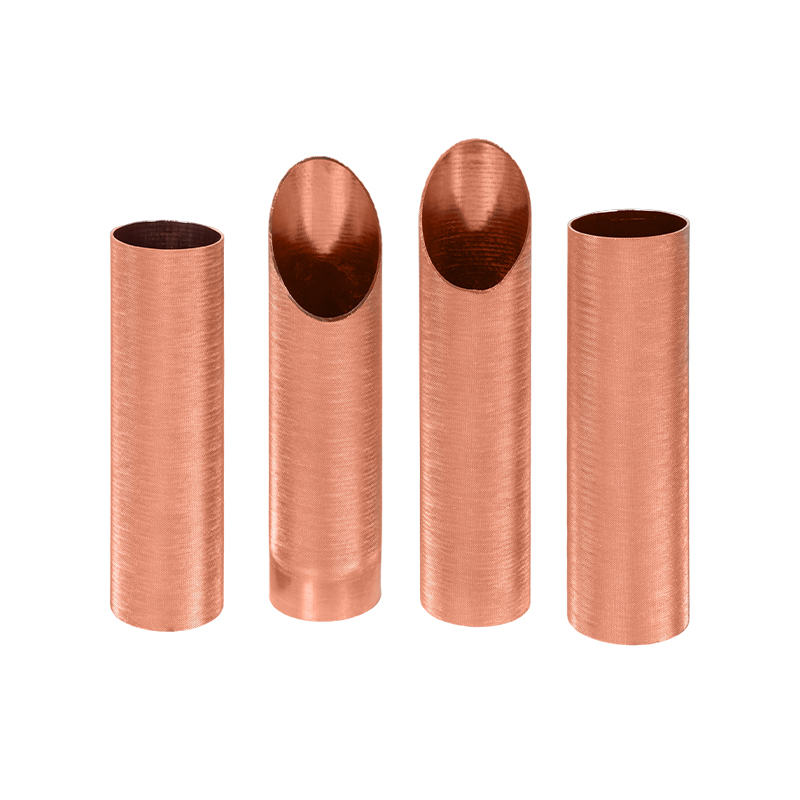

Embossed Copper Tube Deep-processed surface pattern Enhanced heat exchange surfaces, decorative panels
Copper Capillary Tube Precision-machined, tight dimensional accuracy Refrigeration metering devices, instrumentation, small-diameter circuits

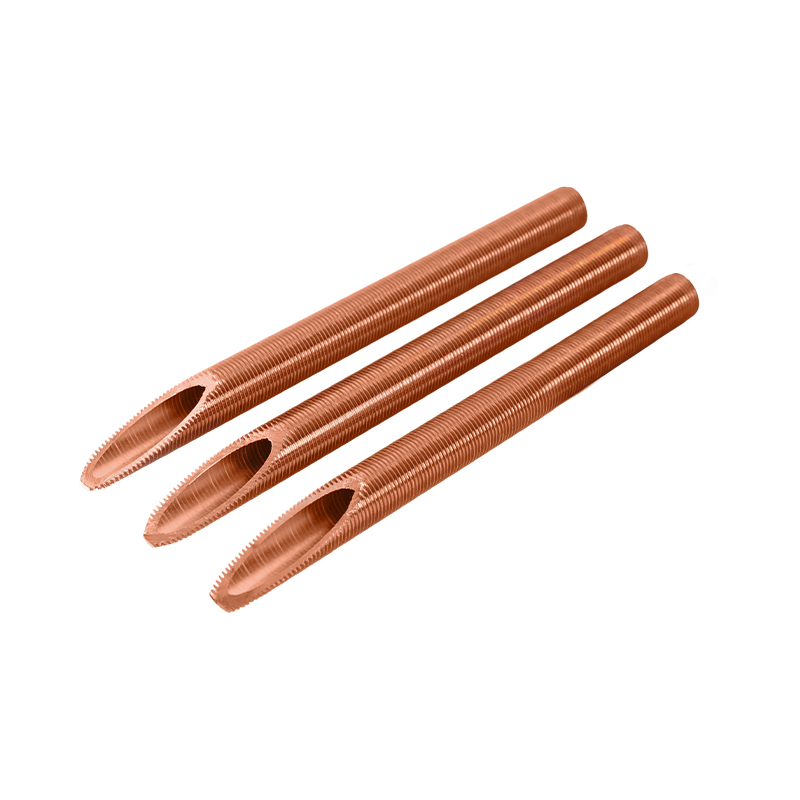

Fin Copper Tube Uniform external fins Heat exchangers, boilers, radiators
Silver Copper Tube Copper with controlled silver addition High-temperature brazing, electrical and thermal conductivity applications

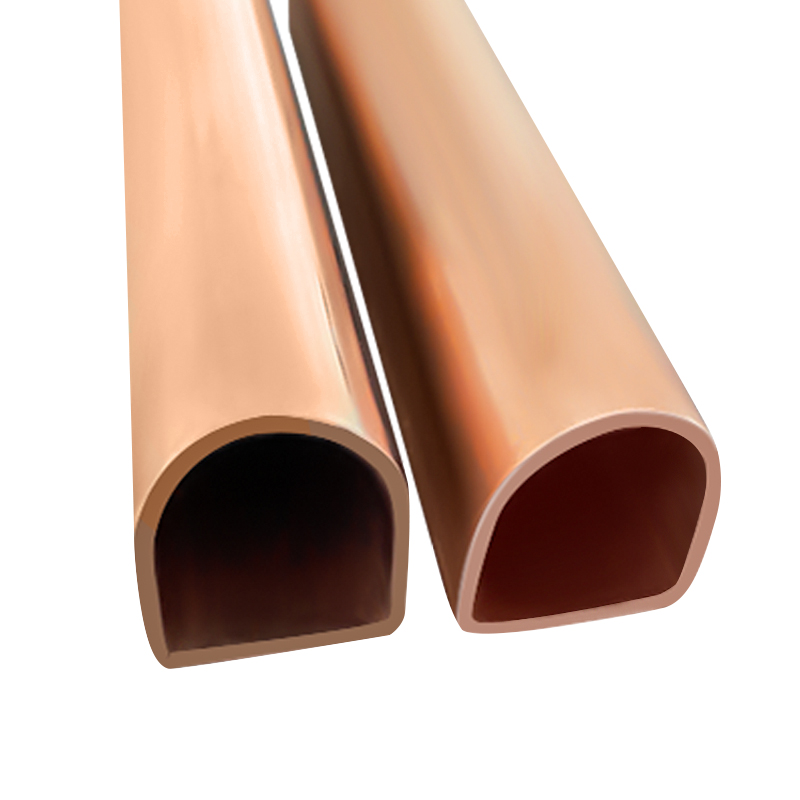

Special Shaped Copper Tube Non-circular cross sections Custom machinery components, electrical conductors, design elements

Materials and Tube Selection

We produce hollow copper tubes from high-purity cathode copper, with grades such as TP1, TP2 (phosphorus-deoxidized) and T2 available according to project requirements. Brass tubes are manufactured from copper-zinc alloys, while silver copper tubes incorporate a controlled silver addition for elevated-temperature performance. The table below summarizes key material considerations for common hollow copper tube types.

  • Copper content: Standard pure copper tubes have a copper content of not less than 99.9%, supporting thermal and electrical conductivity.
  • Temper/hardness: Soft, half-hard and hard tempers are available; hardness can be specified in HV or HBW.
  • Surface condition: Bright annealed, phosphated, degreased or coated surfaces can be supplied for corrosion resistance and appearance.
  • Internal cleanliness: Controlled during drawing and annealing to support refrigerant and water system cleanliness.

Where a project calls for a non-standard alloy or a specific temper, we confirm the metallurgical requirements and processing route before quotation. For thick-wall and high-pressure applications, our engineering team reviews the wall thickness ratio and forming method to reduce collapse or deformation risk during installation.

Critical Specifications and Configuration Options

Hollow copper tube procurement is driven by dimensional and performance parameters. The table below lists the main variables we use to define a suitable tube for each application.

Parameter Typical Range / Options Selection Note
Outer diameter <5 mm to >54 mm, custom sizes Capillary, small, standard and large-diameter ranges
Wall thickness From <1 mm to >2 mm thick-wall Set by working pressure and forming method
Length Straight lengths, coils, fixed-length cutting Matched to handling and installation access
Tolerance OD and ID tolerances to project standard Confirmed against ASTM B88, EN 1057 or other reference
Hardness / temper Soft, half-hard, hard; HV or HBW specified Affects bending and flaring performance
Surface treatment Bright, phosphated, degreased, coated Corrosion resistance and appearance
End finish Plain, expanded, capped, plugged Installation and contamination protection

We also supply thick-wall copper tube, copper water tube and special shaped copper tube for projects where standard dimensions do not fit. For high-volume HVAC orders, inner grooved and finned tubes can be configured to the heat exchanger design.

Production Process and Quality Control

Our integrated chain covers smelting, hot extrusion, cold drawing, precision rolling and annealing. Electrolytic copper is melted and cast into billets, then extruded into hollow tube shells. Multi-pass cold drawing and precision rolling control wall thickness, roundness and surface finish, while continuous bright annealing restores ductility.

  • In-process inspection: Dimensions and surface condition are checked through drawing and annealing.
  • Non-destructive testing: Eddy current, ultrasonic and water-pressure testing are used to detect internal and external defects before dispatch.
  • Laboratory support: Our own laboratory and testing equipment support material verification and product quality certificates.
  • Management systems: ISO 9001 and ISO 50001 certificates underpin quality and energy management.

Acceptance criteria are agreed at order stage, including reference standard, sampling method and documentation package. Where third-party inspection is required, we coordinate the inspection schedule with the project team.

Installation, Maintenance and Serviceability

Hollow copper tubes are joined by brazing, silver soldering or press fittings, depending on the system. The tube temper and wall thickness must suit the selected joining method; soft temper tubes are easier to bend, while hard temper tubes offer higher pressure resistance. We can supply tubes with expanded ends or protective caps to simplify site handling.

Copper's naturally forming oxide film provides corrosion resistance in many environments. For condensers, evaporators and buried heat-exchange tubes, we discuss additional surface protection or cleaning with the project team. Maintenance typically involves periodic inspection of joints and supports rather than tube replacement, and we can supply spare lengths or matching fittings where required.

Packaging, Documentation and Delivery Scope

Copper tubes are packed to protect surfaces and dimensions during transport. Packaging options include wooden boxes, pallets and custom solutions for different tube specifications. Each shipment can include material certificates, dimensional inspection records and test reports agreed at order stage.

  • Standard export packaging or project-specific labelling
  • Fixed-length cutting, end caps and bundle identification
  • Documentation package: quality certificate, test reports and packing list
  • Delivery coordination from our Zhejiang base near Ningbo and Hangzhou ports

Our location in Tangpu Town, Shangyu District, gives access to major road and port infrastructure for export shipments. We confirm delivery scope and Incoterms during order review.

Information We Use to Configure Your Solution

To prepare a suitable hollow copper tube proposal, we review the following project inputs. Providing these details at inquiry stage helps avoid dimensional or standard mismatches.

  • Product description: Outer diameter × wall thickness × length in mm
  • Material grade: e.g. UNS C12200 / DHP, TP1, TP2 or other specified copper alloy
  • Hardness: HV or HBW requirement
  • Tolerances: Outer diameter and inner diameter deviation limits
  • Reference standard: e.g. ASTM B88, EN 1057 or project specification
  • Quantity: kilograms or pieces, with delivery schedule
  • Special requirements: surface treatment, end finish, testing, certification or packaging

For heat exchanger tubes, drawings or fin geometry details help us match the inner grooved or finned profile. For water and sanitary projects, we confirm the applicable potable-water standard and any antibacterial performance requirements.

Frequently Asked Questions

What is the difference between hollow copper tube and copper tube?
Hollow copper tube is a broad term for any copper tube with a central void. Our range includes round, square and special-shaped hollow sections, as well as heat-exchange tubes with internal grooves or external fins. The term is often used interchangeably with copper tube in refrigeration and HVAC procurement.

Which copper tube grades does Jingliang supply?
We regularly produce tubes from high-purity copper with Cu ≥ 99.9%, including phosphorus-deoxidized TP1 and TP2 grades, T2 copper and brass alloys. Grade selection depends on the working fluid, pressure and joining method.

Can you supply hollow copper tubes for high-pressure refrigeration systems?
Yes. Our thick-wall copper tubes are suitable for high-pressure refrigerants, and our production and testing processes are set up to verify wall thickness and pressure integrity. We agree the reference standard and test method at order stage.

What is the typical lead time for a hollow copper tube order?
Lead time depends on tube type, quantity and production schedule. We confirm delivery dates during quotation and keep project teams informed of progress through order review and dispatch planning.

Do you provide custom sizes and shapes?
We manufacture custom outer diameters, wall thicknesses and lengths, as well as square, rectangular and special-shaped sections. Inner grooved, finned and embossed tubes can be configured to your heat exchanger or component design.

How can I request a quotation?
Send the product description, material grade, dimensions, hardness, tolerances, reference standard, quantity and any special requirements. Our team will review the specification and prepare a proposal. For more details on our copper tube range, see See Details.
